Tire Wire Drawing Machine
As the first step of the fully automated tire recycling line, the tire wire drawing machine efficiently separates the steel wire from the rubber tire to improve tire recycling efficiency and avoid damage to subsequent equipment.
- Type: Single hook/ Drouble hook wire drawing machine
- Power: 11/ 18.5 KW
- Capacity: 20-30/ 40-50 pcs per hour
- Application: 900-1200 mm tires
- Service: Warranty, installation, technical support, etc.
Why Choose the Shuliy Wire Drawing Machine?
Parameters of the Tire Debeader Machine
| Type | Single hook tire wire drawing machine | Double hook tyre debeader machine |
| Capacity | 20-30pcs/h | 40-50pcs/h |
| Power | 11KW | 18.5KW |
| Debeader Size | 4.1*0.7*1.7 m | 4.2*0.9*1.7 m |
| Machine Weight | 1400 kg | 1500 kg |
| Packaging Size | 4.3*1.1*1.9 m | 4.4*1.1*1.9 m |
| Application | 900-1200 mm tires | 900-1200 mm tires |
| Working Principle | Pull out the wire from the rim opening on one side of the truck tire | Pull out both sides of the rim wire of the truck tire at the same time |

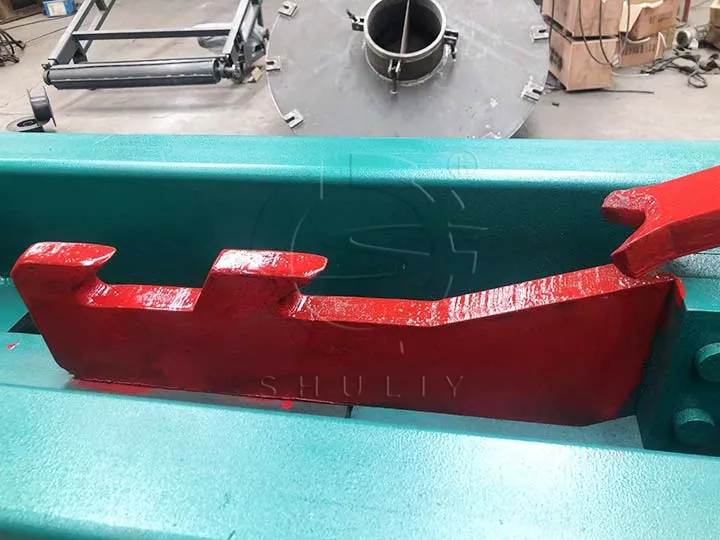

details about tire wire drawing machine

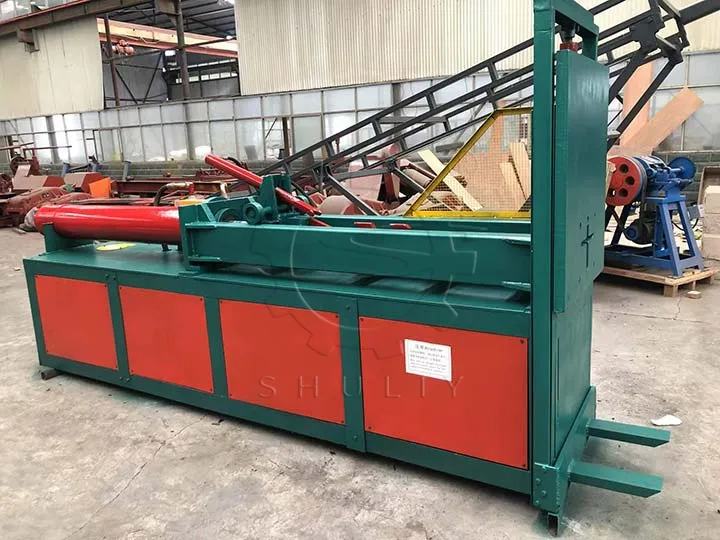

double hook tire debeader machine

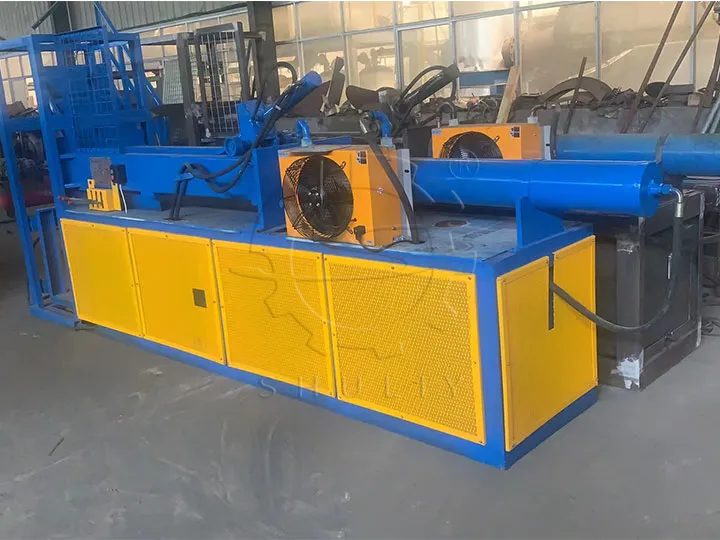

steel wire drawing machine

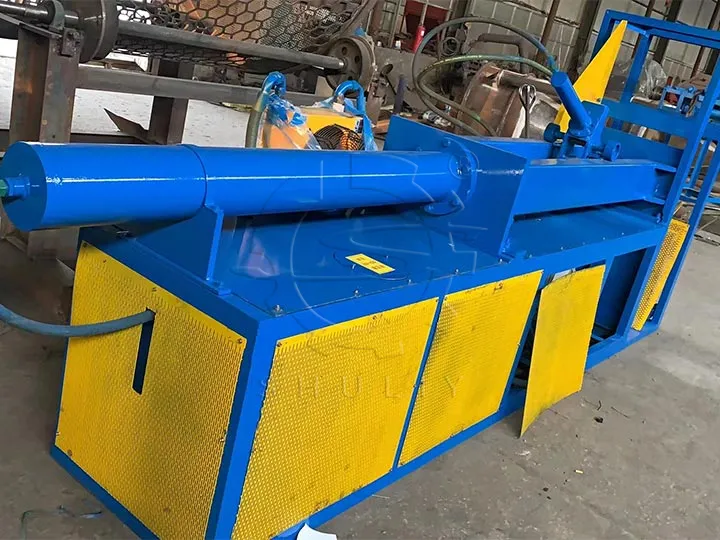

tire debeader

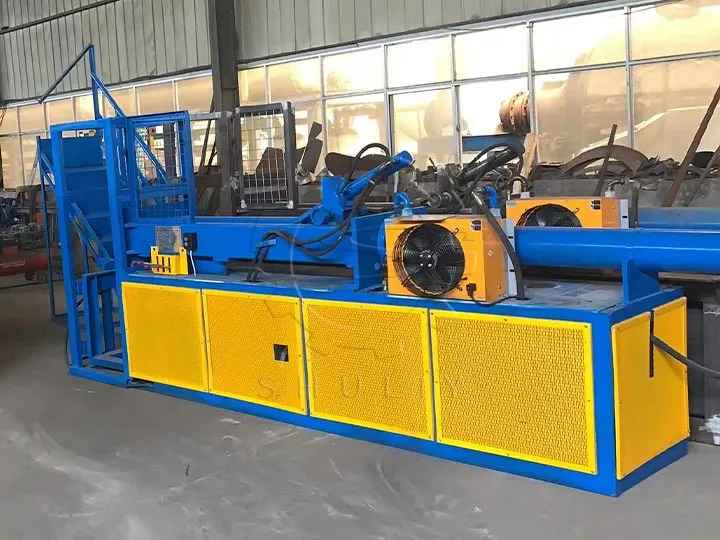

tire wire drawing machine
How Does the Tire Wire Extractor Work?
The tire pulling machine mainly includes a hydraulic system, a hook and claw device, fixed device, electric control system, and frame. The working process is as follows:
1. Put the tire into the clamping device of the tire drawing machine, and the tire mouth is aligned with the hook and claw device.
2. Start the equipment, and the hook and claw device will pull out the tire’s steel wire under the hydraulic system’s drive
3. The steel wire is successfully removed for further cutting recycling.
Support for Your Tire Recycling Line
Not sure whether a single-hook or double-hook tire wire drawing machine is right for your project? Our engineers will recommend the suitable model based on your tire size, daily capacity, and the downstream equipment in your recycling line, helping you achieve smooth steel wire removal before shredding.
From international shipping to technical guidance, we support you at every stage of your project. Every tire wire drawing machine comes with a 12-month warranty, and lifetime spare parts are available to ensure long-term, reliable operation.
Proven in Real Recycling Plants
Our tire debeader machines are running in tire recycling plants across Africa, the Middle East, etc. They are widely used to remove bead wire from truck tires before shredding, reducing wear on shredders and improving the efficiency of the entire recycling process. If you’d like to see working videos, customer cases, or receive a customized quotation, feel free to contact our team.
