Rubber Strip Cutter Machine
The Rubber Strip Cutter is the key equipment in the pre-processing section of the semi-automatic tire recycling line. It efficiently cuts waste tires with steel rims removed into uniform rubber strips to facilitate the subsequent deep-crushing process.
- Capacity: 1000kg/h
- End Products: 3-5cm wide rubber strips
- Application: all sizes of car tires, bus tires, truck tires, etc.
- Service: Warranty, installation, technical support, etc.
Basic Technical Data of Rubber Strip Cutting Machines
| Name | Rubber strip cutting machine |
| Capacity | 1000kg/h |
| Motor Speed | 45r/min |
| Motor Power | 5.5KW |
| Machine Size | 1.3m*0.8m*1.65m |
| Machine Weight | 850kg |
| End Products Specification | 3-5cm wide strip |

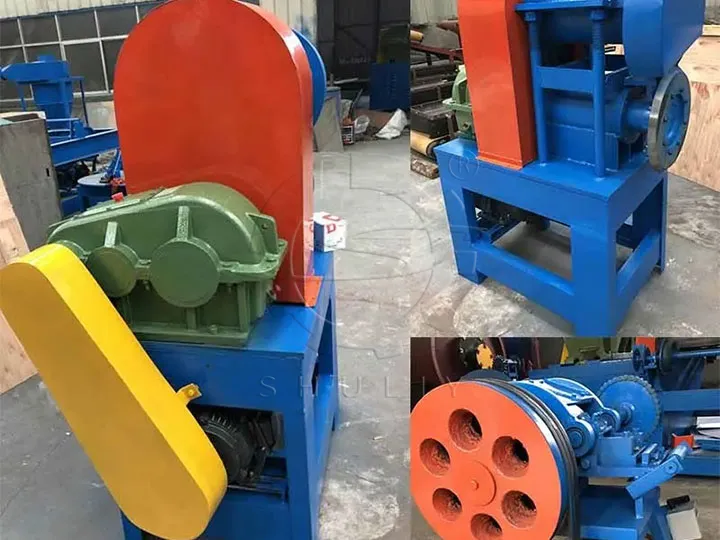

rubber strip cutter

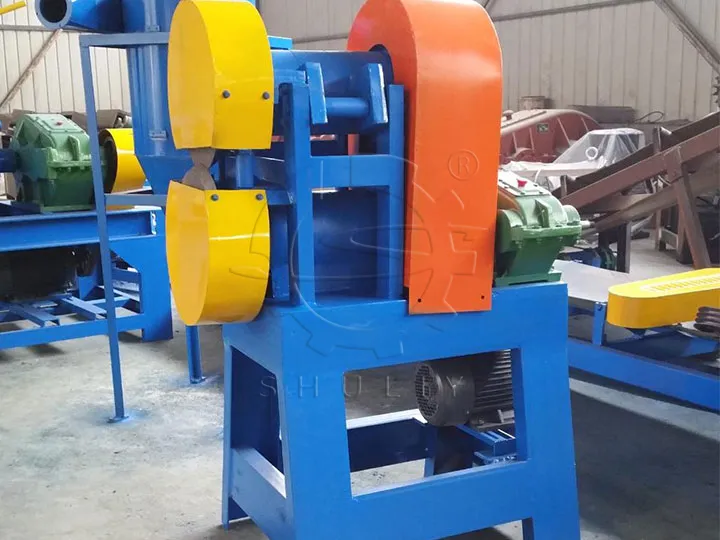

rubber strip cutting machine

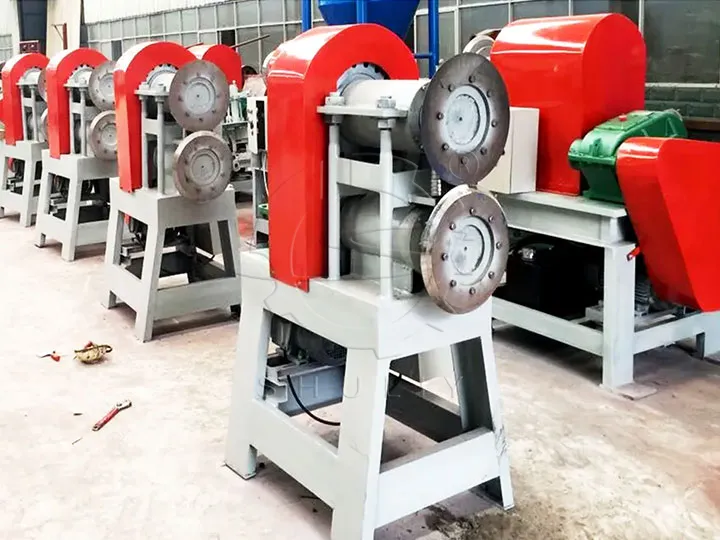

tire strip cutter
How Does The Tire Strip Cutting Machine Work?
The rubber strip cutter is mainly composed of a motor, a reducer, gear&protection covers, a main axis, an a upper and down knife, and base. Its working principle is as follows:
Step 1: Place the wire removed rubber tire in the machine tool inlet.
Step 2: The motor drives the reducer, which drives the main axis and the upper and lower knives to rotate.
Step 3: Rubber tires are cut into long uniform strips by the shearing force of two circular knives.
Step 4: The cut rubber strip goes directly into the tire block cutter for block cutting.

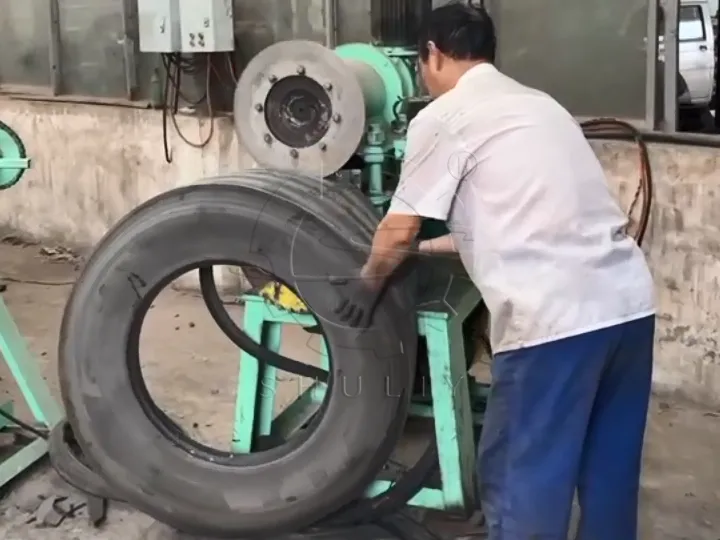

put the tire sidewall

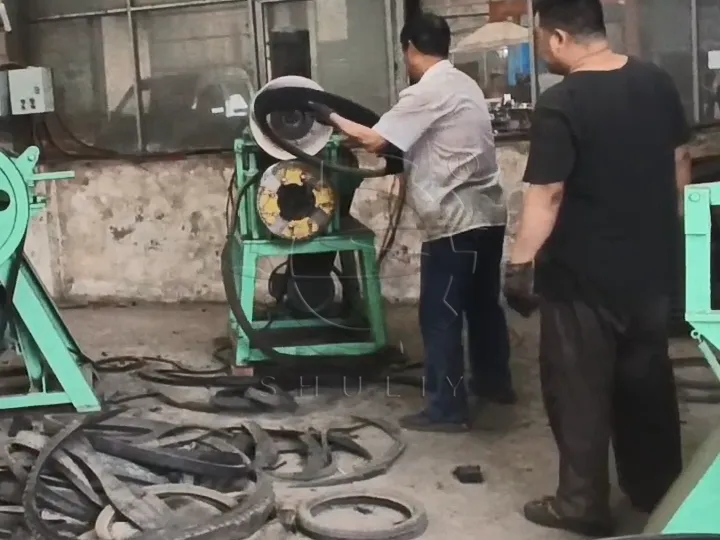

cut tires
FAQ
Some common questions are as follows. If you want to learn more, please feel free to get in touch with us.
