OTR Tire Debeader Machine

For 1.8-4m diameter OTR tires, this steel wire drawing machine efficiently pulls out steel wires from the tire bead to process the rubber tire, avoiding subsequent device damage.

  • Capacity: 30pcs/h
  • Power: 22+3 KW
  • Application: 1.8-4m diameter OTR tires
  • Service: Warranty, installation, technical support, etc.
  • Widely applicable to tires used in large-scale machinery across various industries, including mining, construction, agriculture, etc.
  • Efficiently remove steel wires, safer and saving labor.
  • Sturdy and durable with high load-bearing capacity.
Contact Us
OTR tire steel wire drawing machine

Why Need an OTR Tire Wire Drawing Machine?

Large engineering tires used in mining, construction, agriculture, and other fields are heavy and stronger than ordinary car tires, which are difficult to dismantle and cannot be crushed directly. With the OTR tire steel wire drawing machine used in the OTR tire recycling line, you can:

  • Enhance the recycling efficiency and protect the crushing device
  • Reduce the labor and improve the safety
  • Realize the steel wire, rubber and other resources recycling and utilization.

Advantages of Our OTR Tire Steel Wire Drawing Machine

  • Powerful motor drives equipment efficient and stable operation;
  • Thickened frame with stable structure. Made of high-quality stainless steel for long-lasting durability;
  • Strong safety, equipped with safety guards, emergency stop button, etc., to ensure the safety of the working process；
  • The opening and closing range of the jaws can be freely adjusted according to the tyre size, with high adaptability to the tyre.

Parameters of the OTR Steel Wire Drawing Machine

Some key parameters of the tire debeader are as follows. If you have other needs, please feel free to contact us for customized equipment.

NameOTR Steel Wire Drawing Machine
Capacity2 times/min
Raw material1.8-4m diameter OTR tires
Power22+3KW
Machine Size7.5*2.2*3.3 m
Machine Weight9500 kg
  • OTR tire debeader machine

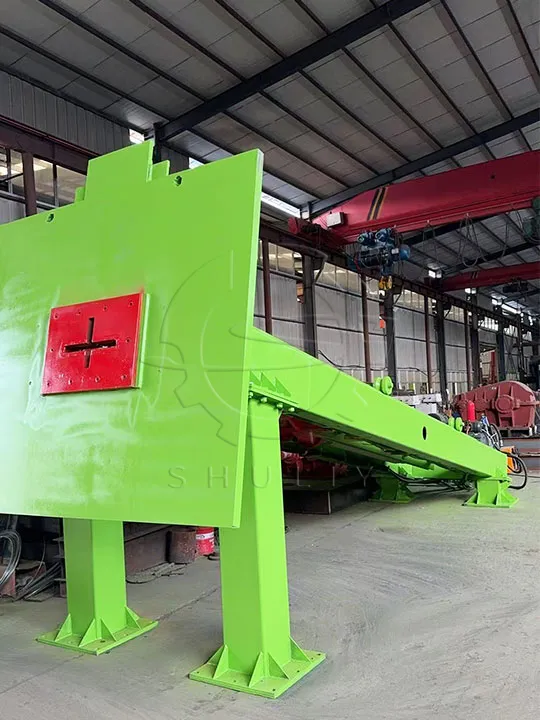

    OTR tire debeader machine

  • OTR tire wire drawing machine

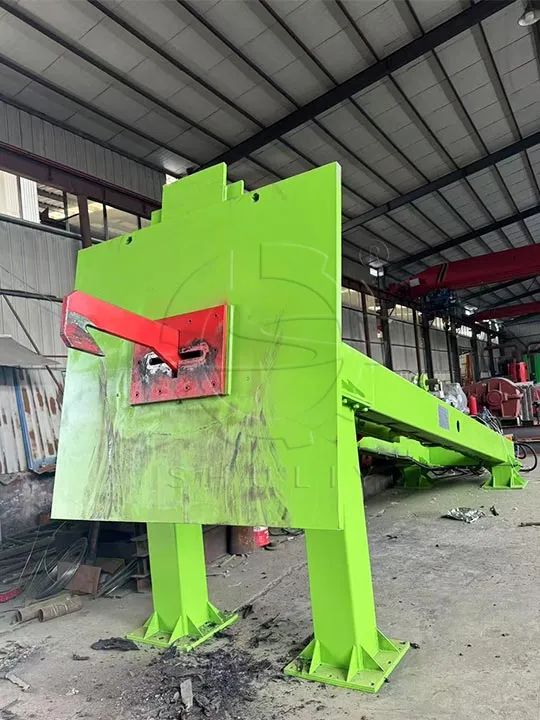

    OTR tire wire drawing machine

  • tire wire bead extractor

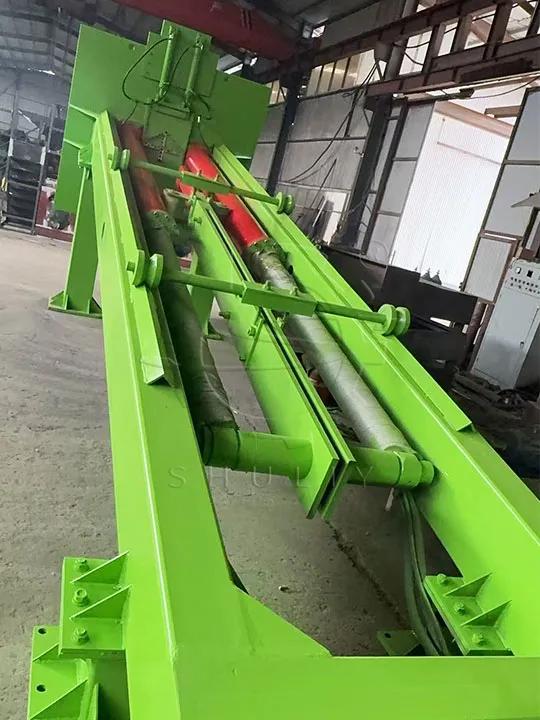

    tire wire bead extractor

Working Principle of OTR Tire Debeader Machine

The OTR tire debeader mainly consists of the frame body, motor, hydraulic system, clamping jaws, traction device, tyre support platform, and so on. It works by the following steps:

  • Fix the mining tires on the support platform of the tire steel wire drawing machine,
  • The position of the tire mouth is aligned with the clamping jaws.
  • The clamping jaws work under the drive of the hydraulic system to hook out the bead steel wire.
  • After removing the bead wire, the rubber portion can go to the next cut-off process for deep recycling!
