Tire Grinding Screening System

The tire grinding screening system outputs high-quality and size-adjustable recycled rubber powder through magnetic separation, grinding, and screening.

  • Input: 30-100 mm tire blocks
  • Output Size: 10-40 mesh rubber powder
  • Capacity: 80-2300 kg/h
  • Service: Warranty, installation, technical support, etc.
  • Widely used for all types of tires
  • Flexible adjustable output
  • Rubber powder purity is up to 99% or more
Contact Us

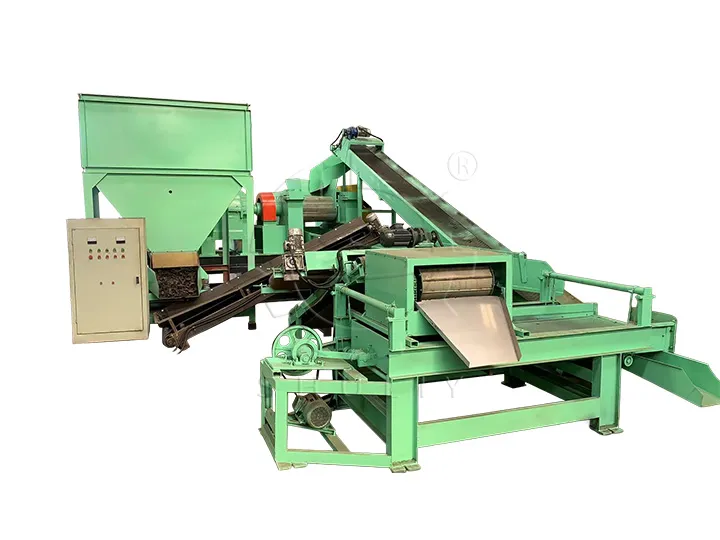

tire crushing and screening unit

Key Features of the Tire Grinding Screening System

  • Precise multi-stage screening with flexible particle size adjustment (10-40 mesh)
  • Capacity up to 2300 kg/h, freely adjustable according to production requirements
  • Optimised design, easy to dismantle and maintain parts such as cutter screens
  • CE and ISO certified, durable, continuous operation
  • High degree of automation, safer and easier to operate
  • Low energy consumption, meets environmental standards

Capacities of the Rubber Powder Machine and the Magnetic Separator Unit

Below are some of the best-selling tire grinding screening systems for reference. The finer the output rubber powder set, the lower the output of the same equipment. If you have other output requirements, please contact us for the latest details!

Size\Model

SL-350 Line

SL-400 Line

SL-450 Line

SL-560 Line

SL-560 D Line

SL-660 Line

10 mesh

250-300 kg/h

400-500 kg/h

500-600 kg/h

900-1000 kg/h

1500-1600 kg/h

2100-2300 kg/h

20 mesh

180-230 kg/h

300-350 kg/h

400-500 kg/h

600-700 kg/h

1200-1300 kg/h

1600-1700 kg/h

30 mesh

150-210 kg/h

240-280 kg/h

350-450 kg/h

450-550 kg/h

1000-1100 kg/h

1200-1300 kg/h

40 mesh

80-120 kg/h

150-175 kg/h

200-250 kg/h

300-350 kg/h

800-900 kg/h

900-1000 kg/h

Structure and Working Principle of Old Tyre Powder Making Machines

This crumb rubber manufacturing unit consists of a feeding conveyor, two magnetic separators, a rubber milling machine, vibrating screens, etc. It works as the below steps:

  • The rubber blocks that the tire shredder processes enter the tire grinding system via the conveyor.
  • The first magnetic separator removes larger steel wires and other metal contaminants to prevent damage to the rubber pulverizer.
  • The tire mill grinds the rubber blocks to a uniform 10-40 mesh powder.
  • Rubber powder enters the vibrating sieve. The rubber powder that meets the set mesh size goes to the next sieve, while those that do not pass are returned to continue grinding.
  • Further sieving of the sieved tire powder to remove hairy iron wires and increase the purity of the rubber powder to more than 99%
  • According to the type of tyres, choose whether to enter the next stage of nylon sieving.

In Summary

The tire grinding screening system is widely used in all tire recycling plants, which is important for realizing tire recycling and rubber powder production. To better meet your production needs, please feel free to contact us. We promise:

  • International logistics ensure smooth transport to designated ports.
  • Provide on-site installation and technical guidance.
  • One year free warranty, lifetime parts supply!
